Product Details:
Place of Origin:	China
Brand Name:	hongcheng
Certification:	Pcoc, Reach, Iecee, Scoc, Epa, Gs
Model Number:	1/2" TO 24 "
Payment & Shipping Terms:
Minimum Order Quantity:	1PC
Price:	consult
Packaging Details:	Plywood Cases or Pallets
Delivery Time:	7-15 work days
Payment Terms:	L/C, D/P, T/T
Supply Ability:	2 Million Ton/Year

Detail Information
Size ::	Customized Size,1/2"~48"	Certification::	ASME DNV BV API CE ABS CE
Quantity::	1 Unit	Packaging Details::	No Fumigate Or Fumigate Plywood/Wood Pallet Or Case
Degree ::	45D Or Customized	Application ::	Pipeline,Oil,Gas/oil/water
High Light:	45Degree Black Steel Pipe Elbow CE , CE Black Steel Pipe Elbow , hongcheng 45 Degree Pipe Elbow Black

Description	Carbon Steel LR Elbow
Standard	ASTM B16.9,JIS G3458 JIS G3462 DIN 17175 EN10253
Material	A234 WP5/P9/P11/P12/P22/P91 A860 WPHY 52/60/65 A403 WP304/304L/316/316L/321 13CrMo44 10CrMo910 12CrMo195 Cr5Mo 15CrMo 12Cr2Mo
Size	Outside Diameter: 6-2400mm Wall Thickness:1.0-200mm Length: 1-12m
Surface	Mill,Painted,Anti-rust Coated,etc
Application	Boiler Pipe,Chemical Fertilize Pipe,Oil/Gas Pipe,Fluid Pipe,Drill Pipe, Hydraulic Pipe,Structure Pipe,etc

NPS	O.D. D	90° Long Rad Center to End A	45° Long Rad Center to End B	90° 3D Center to End A	45° 3D Center to End B
1/2	21.3	38	16
3/4	26.7	38	19	57	24
1	33.4	38	22	76	31
1.1/4	42.2	48	25	95	39
1.1/2	48.3	57	29	114	47
2	60.3	76	35	152	63
2.1/2	73	95	44	190	79
3	88.9	114	51	229	95
3.1/2	101.6	133	57	267	111
4	114.3	152	64	305	127
5	141.3	190	79	381	157
6	168.3	229	95	457	189
8	219.1	305	127	610	252
10	273	381	159	762	316
12	323.8	457	190	914	378
14	355.6	533	222	1067	441
16	406.4	610	254	1219	505
18	457	686	286	1372	568
20	508	762	318	1524	632
22	559	838	343	1676	694
24	610	914	381	1829	757
26	660	991	406	1981	821
28	711	1067	438	2134	883
30	762	1143	470	2286	946
32	813	1219	502	2438	1010
34	864	1295	533	2591	1073
36	914	1372	565	2743	1135
38	965	1448	600	2896	1200
40	1016	1524	632	3048	1264
42	1067	1600	660	3200	1326
44	1118	1676	695	3353	1389
46	1168	1753	727	3505	1453
48	1219	1829	759	3658	1516

Nominal Pipe Size	1/2 to 2.1/2	3 to 3.1/2	4	5 to 8
Outside Diameter at Bevel (D)	+ 1.6 - 0.8	1.6	1.6	+ 2.4 - 1.6
Inside Diameter at End	0.8	1.6	1.6	1.6
Center to End LR (A/B)	2	2	2	2
Center to End 3D (A/B)	3	3	3	3
Nominal Pipe Size	10 to 18	20 to 24	26 to 30	32 to 48
Outside Diameter at Bevel (D)	+ 4 - 3.2	+ 6.4 - 4.8	+ 6.4 - 4.8	+ 6.4 - 4.8
Inside Diameter at End	3.2	4.8	+ 6.4 - 4.8	+ 6.4 - 4.8
Center to End LR (A/B)	2	2	3	5
Center to End 3D (A/B)	3	3	6	6
Wall Thickness (t)	Not less than 87.5% of Nominal Wall Thickness

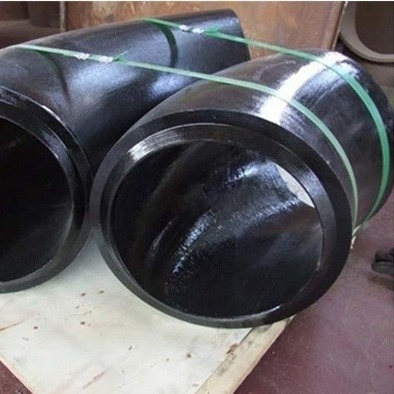

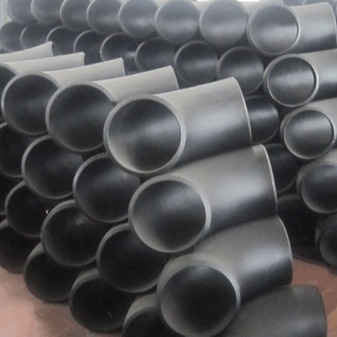

45 Degree Black Steel Pipe Elbow For Pipeline CE Certification

45Degree Black Steel Pipe Elbow CE

CE Black Steel Pipe Elbow

hongcheng 45 Degree Pipe Elbow Black

Carbon Steel 45 Degree Ce Pipe Elbow Fittings Dn 800 Sch Std Lr A234 Wpb Black Steel Pipe Elbow

In the pipeline system, elbow is a pipe fitting that changes the direction of the pipeline.

According to the angle, there are 45 ° and 90 ° 180 ° three most commonly used, in addition, according to the needs of the project, it also includes 60 ° and other abnormal angle elbows.

Elbow materials are stainless steel, alloy steel, carbon steel, non-ferrous metals and so on.

Scope of application:

Because of its good comprehensive performance, elbow is widely used in chemical engineering, construction, drainage, petroleum, light and light industry, water heating, fire protection, electric power, aerospace, shipbuilding and other basic projects.

Description

Carbon Steel LR Elbow

Standard

ASTM B16.9,JIS G3458 JIS G3462 DIN 17175 EN10253

Material

A234 WP5/P9/P11/P12/P22/P91

A860 WPHY 52/60/65

A403 WP304/304L/316/316L/321

13CrMo44 10CrMo910 12CrMo195 Cr5Mo 15CrMo 12Cr2Mo

Size

Outside Diameter: 6-2400mm Wall Thickness:1.0-200mm Length: 1-12m

Surface

Mill,Painted,Anti-rust Coated,etc

Application

Boiler Pipe,Chemical Fertilize Pipe,Oil/Gas Pipe,Fluid Pipe,Drill Pipe,

Hydraulic Pipe,Structure Pipe,etc

NPS

O.D. D

90° Long Rad Center to End A

45° Long Rad Center to End B

90° 3D Center to End A

45° 3D Center to End B

1/2

21.3

38

16

3/4

26.7

38

19

57

24

1

33.4

38

22

76

31

1.1/4

42.2

48

25

95

39

1.1/2

48.3

57

29

114

47

2

60.3

76

35

152

63

2.1/2

73

95

44

190

79

3

88.9

114

51

229

95

3.1/2

101.6

O.D.
D

90°
Long Rad
Center to End
A

45°
Long Rad
Center to End
B

90°
3D
Center to End
A

45°
3D
Center to End
B
