Product Details:
Place of Origin:	China
Brand Name:	hongcheng
Certification:	Pcoc, Reach, Iecee, Scoc, Epa, Gs
Model Number:	1/2" TO 24 "
Payment & Shipping Terms:
Minimum Order Quantity:	1PC
Price:	consult
Packaging Details:	Plywood Cases or Pallets
Delivery Time:	7-15 work days
Payment Terms:	L/C, D/P, T/T
Supply Ability:	2 Million Ton/Year

Detail Information
Model Number::	1/2"-36"	Certification::	ISO TUV
Quantity::	1 Unit	Packaging Details::	No Fumigate Or Fumigate Plywood/Wood Pallet Or Case
DEGREE::	45° 90° 180°	Standard::	ASTM B16.9,JIS G3458 JIS G3462 DIN 17175 EN10253
High Light:	TUV Seamless Galvanized Pipe Elbow , Seamless ISO Galvanized Pipe Elbow , TUV 45Degree Seamless Pipe Elbow

NPS	O.D. D	90° Long Rad Center to End A	45° Long Rad Center to End B	90° 3D Center to End A	45° 3D Center to End B
1/2	21.3	38	16
3/4	26.7	38	19	57	24
1	33.4	38	22	76	31
1.1/4	42.2	48	25	95	39
1.1/2	48.3	57	29	114	47
2	60.3	76	35	152	63
2.1/2	73	95	44	190	79
3	88.9	114	51	229	95
3.1/2	101.6	133	57	267	111
4	114.3	152	64	305	127
5	141.3	190	79	381	157
6	168.3	229	95	457	189
8	219.1	305	127	610	252
10	273	381	159	762	316
12	323.8	457	190	914	378
14	355.6	533	222	1067	441
16	406.4	610	254	1219	505
18	457	686	286	1372	568
20	508	762	318	1524	632
22	559	838	343	1676	694
24	610	914	381	1829	757
26	660	991	406	1981	821
28	711	1067	438	2134	883
30	762	1143	470	2286	946
32	813	1219	502	2438	1010
34	864	1295	533	2591	1073
36	914	1372	565	2743	1135
38	965	1448	600	2896	1200
40	1016	1524	632	3048	1264
42	1067	1600	660	3200	1326
44	1118	1676	695	3353	1389
46	1168	1753	727	3505	1453
48	1219	1829	759	3658	1516

Nominal Pipe Size	1/2 to 2.1/2	3 to 3.1/2	4	5 to 8
Outside Diameter at Bevel (D)	+ 1.6 - 0.8	1.6	1.6	+ 2.4 - 1.6
Inside Diameter at End	0.8	1.6	1.6	1.6
Center to End LR (A/B)	2	2	2	2
Center to End 3D (A/B)	3	3	3	3
Nominal Pipe Size	10 to 18	20 to 24	26 to 30	32 to 48
Outside Diameter at Bevel (D)	+ 4 - 3.2	+ 6.4 - 4.8	+ 6.4 - 4.8	+ 6.4 - 4.8
Inside Diameter at End	3.2	4.8	+ 6.4 - 4.8	+ 6.4 - 4.8
Center to End LR (A/B)	2	2	3	5
Center to End 3D (A/B)	3	3	6	6
Wall Thickness (t)	Not less than 87.5% of Nominal Wall Thickness

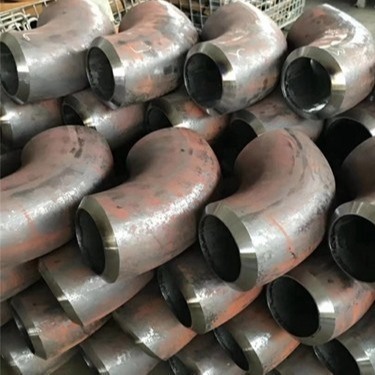

Seamless Galvanized Pipe Elbow 45 Degree ISO TUV Certification

TUV Seamless Galvanized Pipe Elbow

Seamless ISO Galvanized Pipe Elbow

TUV 45Degree Seamless Pipe Elbow

Steel Pipe Elbow Seamless Astm A234 Wpb Steel Pipe Elbow Carbon Black Galvanized

ASTM A234 WPB is a common grade for 90 degree long radius elbow, which is one of the highly demanded. They available in a large size and thickness range. They have a good performance and suffices most industrial pipeline needs.

How Many Types of Steel Pipe Elbow?

According to the shape, there are straight and reducing elbow.

Depending on the angle, there are normally 45 degree, 90 degree and 180 degree elbow.

As based on radius, there are long radius ( 1.5D) and short radius ( 1D) elbow.

For connection, they can divided into socket weld elbow, butt weld elbow and threaded elbow.

Package of 90 Degree Elbow

We marked all Carbon Steel Buttweld Fittings with Name, Grade, Heat No, Size, Standard and Schedule Thickness. After done of blasting, painting and marking of 90 Degree ASTM A234 WPB Elbow, our workers wrapped them with plastic foam and packed them into wooden cases or pallets.

Clear labels are tagged on the outside of the package for easy identification of the quantity and product I.D. great care is taken during operation and transportation.

Carbon Steel Elbow Dimensions

Dimensions of Carbon Steel 90 Degree Elbow & 45 Degree Elbow

NPS

O.D. D

90° Long Rad Center to End A

45° Long Rad Center to End B

90° 3D Center to End A

45° 3D Center to End B

1/2

21.3

38

16

3/4

26.7

38

19

57

24

1

33.4

38

22

76

31

1.1/4

42.2

48

25

95

39

1.1/2

48.3

57

29

114

47

2

60.3

76

35

152

63

2.1/2

73

95

44

190

79

3

88.9

114

51

229

95

3.1/2

101.6

133

57

267

111

4

114.3

152

64

305

127

O.D.
D

90°
Long Rad
Center to End
A

45°
Long Rad
Center to End
B

90°
3D
Center to End
A

45°
3D
Center to End
B
